Most conversations about custom wheelchair fit start at the wrong end of the chair. Someone measures seat width, seat depth, backrest height, and footrest length, writes the numbers on a form, and calls the result a fit. Four measurements and a shipping address.
That's sizing. It isn't fit.
Fit is what happens when the chair's geometry matches the user's biomechanics under real working conditions, not across a showroom floor on delivery day. It shows up in the pelvis, staying neutral at hour six of a workday. It shows up in the shoulder line, not creeping forward across a long flight. It shows up in how the chair tracks through a narrow corridor when the user is thinking about the meeting they're walking into, not the wheels underneath.
And here's the part the sizing approach misses: a wheelchair fitted by seat-width-and-depth alone is fitted to a geometry that doesn't exist. It's fitted to a posture the user holds for about fifteen minutes in a clinical room, not the posture they settle into by lunch.
A made-to-measure wheelchair, done properly, is an engineering response to a specific body doing specific things. The question is never whether the chair is the right size. The question is whether every dimension of the chair, from axle position through backrest angle through caster trail, is set against the individual's anatomy, propulsion style, and daily environment.
Why this is important: Sizing produces a chair that's approximately correct for thousands of users. Fitting produces a chair that's exactly correct for you.
What Wheelchair Body Measurement Actually Needs to Capture
Traditional wheelchair body measurement runs through a tape measure: seat width, seat depth, back height, lower leg length, and forearm length. Five numbers. The user is then sorted into the closest catalog size.
But the body doesn't sit in two dimensions. It sits in three, and it shifts through a fourth, which is time.
-
Pelvic tilt angle at rest and under propulsion load
-
Shoulder line relative to the rear axle during a full push stroke
-
Thigh length from ischial tuberosity to popliteal fossa, not knee to hip
-
Rib cage width at the level of typical backrest contact
-
Hand span and grip arc at the position where the push stroke begins
-
Scapular range of motion through the follow-through phase
KIVRO captures these with a 3D body scan that records seated anatomy with sub-millimeter precision, then layers a biomechanical analysis over the scan to model how the user actually moves within their body. The result is a dataset, not a form. Every dimension of the chair is then designed against that dataset.
Why this matters: A tape measure sees the body as a collection of lengths. A scan sees it as a system. Only the second one gives the engineering team enough information to build a chair that holds its fit through a decade of use.

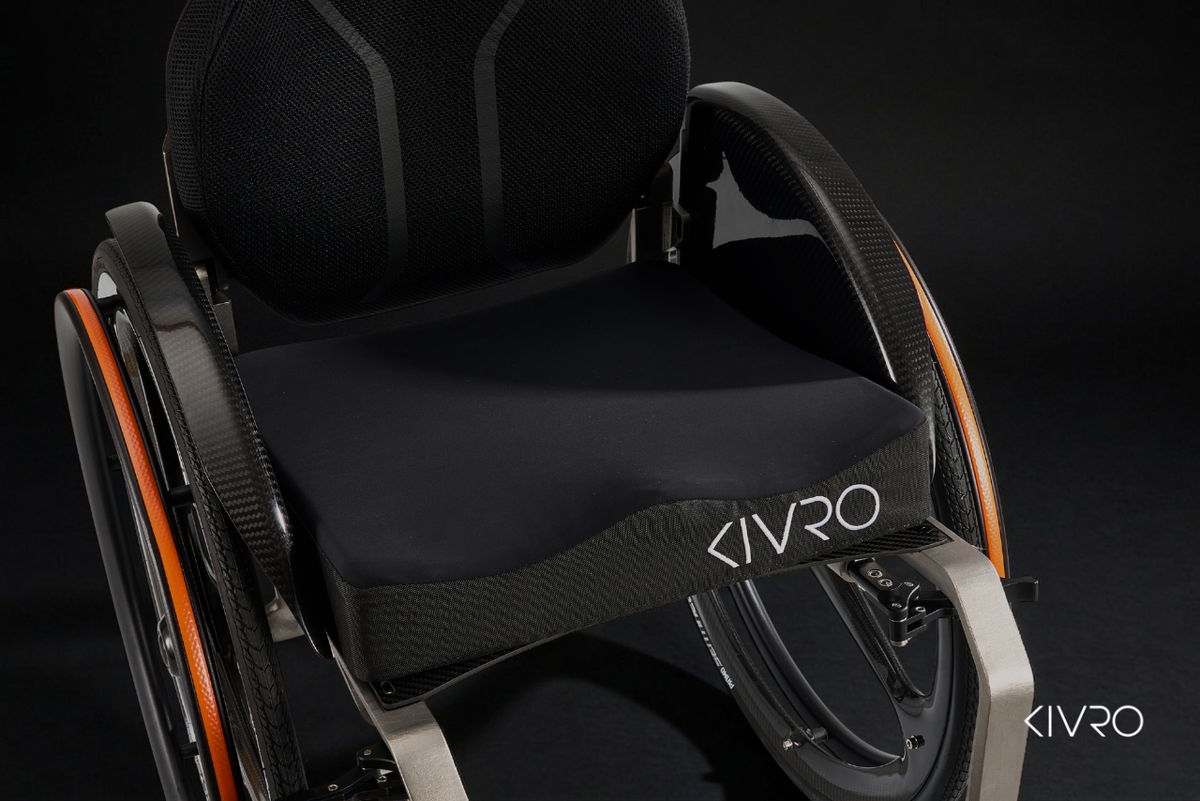

The pelvis sets the chair.
Ergonomic wheelchair fit begins at the pelvis. Every other decision the engineering team makes is downstream of what the pelvis is doing.
If the pelvis tilts posteriorly, the spine flexes, the shoulders roll forward, the push stroke shortens, and the neck takes a load it was never meant to carry. If the pelvis holds neutral, the kinetic chain above it has a stable foundation to work from.
-
Seat pan angle set to the user's specific pelvic geometry
-
Cushion density mapped to pressure distribution under real load
-
Back-to-seat angle calibrated to hold the pelvis without bracing
-
Lateral support shaped to the ilia, not pressed flat against them
-
Seat-to-floor height coordinated with lower leg length and transfer style
The seating system is designed using detailed scan data from each individual user. By customizing the density across the surface, the system provides softer areas where the pelvis requires pressure relief and firmer regions where additional support is needed. This tailored approach ensures that the seating closely matches the user’s unique anatomy, effectively reducing peak pressure in comparison to standard, non-customized seating. The result is a more comfortable and supportive experience, with the seating system adapting precisely to the user’s needs.
Axle Position Is Not a Preference
Ask ten fitters where the rear axle should sit, and you'll get ten answers, most of them close to correct, none of them exact for any specific user. Axle position is treated as a preference or a style. It isn't.
Axle position is geometry, and geometry is math.
-
An axle forward of the shoulder shortens the wheelbase and sharpens turn response
-
An axle rearward of the shoulder stabilizes the chair but costs propulsion efficiency
-
Vertical axle height changes the push arc and wrist angle through the stroke.
-
Camber angle widens the base and shifts lateral stability during cornering.
-
The right axle position is set by shoulder geometry, not by user preference.
Place the axle without a scan, and the result is a guess refined through trial adjustments over months. Place it against scanned shoulder geometry, and the chair is correct on day one. A custom titanium wheelchair, created using scan-driven fabrication, integrates that precision directly into the frame rather than relying on a replaceable bracket.
Why this step is important: The axle is the fulcrum of the whole chair. Setting the axle by eye involves estimating the most critical measurement in the entire chair build.
The Backrest Question
A good backrest does two things at once: it holds the trunk without forcing it, and it stays out of the way of the push stroke. Getting those two to coexist is where a made-to-measure wheelchair earns its name.
Backrest design must align height, angle, and contour with the user's propulsion style.
-
Height measured against thoracic spine length, not overall back length
-
Angle set to hold pelvic neutrality without pressing the shoulders forward
-
Lateral contour shaped to the rib cage, not flattened against it
-
Mounting hardware that locks an angle cleanly under shear load
-
The stiffness is calibrated for trunk control, being firmer for low control and yielding for high control.
An inch too tall, and the scapula locks. An inch is too short, and the trunk works overtime all day. This nuance is the kind of detail the wheelchair sizing and fit process has to get right before the frame goes into fabrication.
Propulsion Geometry: Where the Push Stroke Lives
The push stroke is a loop. It starts at the top of the handrim, travels through a full rotation of the shoulder, and ends with the hand returning to the rim. A chair fitted poorly forces the user to reshape that loop around the chair. A chair fitted perfectly lets the loop run along its natural path.
So what changes with a correctly fitted chair? The push stroke gets longer, slower, and easier at the same time.
-
Contact angle at the start of the push, set by handrim diameter and offset
-
Release angle at the end of the push, set by rim-to-hip clearance
-
Recovery arc during the follow-through, shaped by backrest height
-
Cadence at comfortable cruising speed, a function of total loop length
-
Load per stroke, inversely proportional to how much of the loop is usable
The push stroke is where fitness shows up as a daily energy cost. A misfit chair steals watts from every push. Across a workday, that's thousands of pushes and measurable shoulder fatigue. Across a career, it's the kind of accumulated wear the user never agreed to.
Center of Gravity and How It Changes Everything Upstream
The center of gravity is set by axle position, seat angle, backrest angle, and the user's own mass distribution. Adjusting any of these factors shifts the center of gravity (CG), which in turn alters every other dynamic variable in the chair.
-
Forward CG shortens tip threshold and sharpens directional response
-
A rearward CG increases stability but dulls responsiveness during propulsion
-
Higher CG raises the chair's feel through the wheels during fast turns.
-
Lower CG drops the chair's driving feel closer to the pavement.
-
Asymmetric CG from body asymmetry must be engineered against, not around.
A scan-driven build can account for asymmetry as a design input. An off-the-shelf chair treats asymmetry as an anomaly to be adjusted for later.
Why this matters: CG, or center of gravity, is the single variable that determines how the chair feels in motion. Fitted correctly, it disappears from the user's awareness.
Frame Stiffness and What It Does to the Fit
Fit is not just determined by static measurements; how a wheelchair frame responds under load plays a crucial role in how the chair feels and performs throughout the day. When a frame flexes during use, the effective fit can subtly shift with every push cycle. As a result, the wheelchair may feel different at the end of the day compared to the beginning, even if its dimensions haven’t visibly changed. This flex also means the user expends extra energy—not only to propel the chair forward, but also to compensate for the frame’s movement.
Several factors influence how a wheelchair maintains its fit and performance over time. Longitudinal bending stiffness helps keep the axles properly aligned throughout each push, while torsional stiffness ensures the caster geometry remains stable during turns. The integrity of the frame’s joints affects how and where fatigue accumulates over repeated cycles, which impacts the chair’s long-term durability. Material selection determines the balance between stiffness and weight, directly shaping the user’s experience. Finally, the architecture of the frame dictates how stiffness is distributed across the entire chair, influencing both comfort and efficiency.
KIVRO’s approach to frame design minimizes unnecessary flex by using advanced materials and construction techniques. By focusing on overall structural integrity, each chair maintains its geometry and performance even after long-term, intensive use. This attention to engineering detail ensures that users experience consistent fit, efficient energy transfer, and reliable handling, day after day.
Vibration, comfort, and the surfaces that users do not select are important considerations.
Active users work on whatever surface is in front of them: tile, carpet tiles, polished stone, pavement transitions, airport floors, or hotel lobbies. The chair must absorb the impact from various surfaces without compromising propulsion efficiency on smooth surfaces.
This scenario is where seating and frame have to cooperate, not compete.
-
Cushion density variation that absorbs high-frequency road inputs
-
Frame geometry that routes low-frequency inputs away from the pelvis
-
Tire choice that balances rolling efficiency against vibration damping
-
Caster trail that prevents flutter at cruising pace
-
Rim offset that keeps grip stable through a rough transition
The cushion’s internal structure is engineered to significantly reduce vibration in the frequencies most noticeable to the user, especially around the pelvis. This vibration damping is not simply an added layer, but is built directly into the cushion’s design. By addressing vibration through the core structure, the cushion provides a smoother and more comfortable ride compared to standard cushions.
Why Fit Degrades in Standard Chairs
A standard chair fits approximately on day one. Then it drifts. Components wear at different rates, fasteners loosen, cushion foam compresses and never recovers, and the fit the user had on delivery day is not the fit they have two years later.
-
Foam cushions lose density and never return to spec.
-
Welded joints develop microscopic fatigue cracks over cycles.
-
Bolted seat pans shift positions under repeated transfer loads
-
Bearings wear unevenly based on camber and pavement angle.
-
Brake pads glaze and lose grip on the tire over time.
So the question isn't just whether the chair fits now. It's whether the fit holds.
A KIVRO frame is engineered to maintain its geometry through the full fatigue window, which is part of why scan-driven titanium is the material of choice for a made-to-measure wheelchair built for long-horizon use.
The KIVRO Approach
At KIVRO, custom wheelchair fit is treated as an engineering solution that begins well before the build process, rather than relying on adjustments after delivery. The process starts with a sophisticated 3D body scan that captures the user’s seated anatomy in remarkable detail, recording every contour, asymmetry, and range of motion as precise data.
KIVRO's engineering team then analyzes this data through a comprehensive biomechanical assessment, taking into account factors such as pressure distribution, propulsion geometry, and joint alignment. The result is a digital model of the user’s body in motion, which forms the blueprint for designing the chair’s geometry with exceptional accuracy.
KIVRO's PersonalFit approach carries the insights from the scan through to the final fabrication of the wheelchair. Every element—from the angle of the seat pan and the contour of the backrest to the positioning of the axles and casters—is custom engineered based on the individual’s unique anatomy, rather than relying on standard size charts. This ensures optimal support, comfort, and efficiency for each user.
The finished wheelchair is constructed with high-quality materials and advanced manufacturing techniques, resulting in a product that delivers outstanding durability, stability, and ride quality. At KIVRO, the entire process is focused on maintaining precise fit and performance so users can enjoy a wheelchair that remains comfortable and reliable for years to come.
Frequently Asked Questions
How is KIVRO's fit different from a fitter-led configuration?
A fitter-led configuration starts with a base chair and adjusts it toward the user through components, brackets, and cushion choices. KIVRO starts with the user's 3D scan and biomechanical profile, then designs the frame itself around that data. The fit is engineered into the titanium, not bolted on afterward.
Can the fit be updated if the user's body changes over time?
Certain elements, like backrest angle and cushion configuration, are designed to be refined, allowing for adjustments to accommodate changes in the user's body over time. The frame geometry itself is fabricated to hold its precision across a long working life. Changes outside the design envelope trigger a new consultation and, if needed, a new build.
How long does the fitting process take from scan to delivery?
Timing depends on the specifics of the build and the consultation schedule. The KIVRO team walks each user through the full timeline during the initial consultation so there are no surprises.
Does KIVRO fit work for asymmetrical anatomy or unusual body geometry?
Yes. Asymmetry is considered a design input, which is captured during the scan and incorporated into the digital model. The frame is then fabricated to accommodate the asymmetry instead of forcing the body to conform to a symmetrical chair.
What happens at a KIVRO consultation?
The consultation covers the user's daily environment, working posture, current chair, and propulsion style. A 3D body scan follows, along with a biomechanical review. From there, the engineering team proposes a digital model of the chair and walks the user through the design decisions in plain language.
Experience a Perfect Fit: Personalized Wheelchair Consultation
The most important question when considering a custom wheelchair is not simply which chair to purchase, but rather which chair will continue to fit correctly after three, five, or even ten years of use. A wheelchair that is fitted only by basic sizing can gradually drift out of specification over time, while a chair that is engineered using precise body scans is designed to maintain its fit and function for the long term.
KIVRO’s consultation process is specifically designed to address this long-term perspective. Our engineering team guides each user through the entire process, from the initial scan and biomechanical analysis to the proposed geometry of the wheelchair. Every design decision is carefully explained using the user’s own data, so you’ll understand why the axle is positioned as it is, why the backrest is contoured for your posture, and why the seat pan is angled to support your specific needs.
Over the years, a well-engineered wheelchair proves its value by maintaining precision and structural integrity through tens of thousands of push cycles. This commitment to enduring accuracy establishes the engineering standard for a wheelchair built to last well beyond the day it is delivered.
To begin your journey toward a truly custom mobility solution, you can explore the design process or book a consultation with a KIVRO engineer. For those interested in the technical aspects, our custom titanium wheelchair overview provides valuable insights into the underlying technology.
